L2TP VPN on Mac OS X

It will be no trouble to setup a VPN-connection via PPTP protocol on Mac OS X – the setup process is intuitively clear, and there is no need to install any additional software.

Click on Apple icon snd select System Preferences.... In appeared window click Network.

System Preferences

Click + (plus) icon from bottom left. Set the following settings:

  • Interface - VPN
  • VPN Type - L2TP
  • Service Name - any desired name for connection, for example Web-Leader VPN

Add VPN Account VPN settings

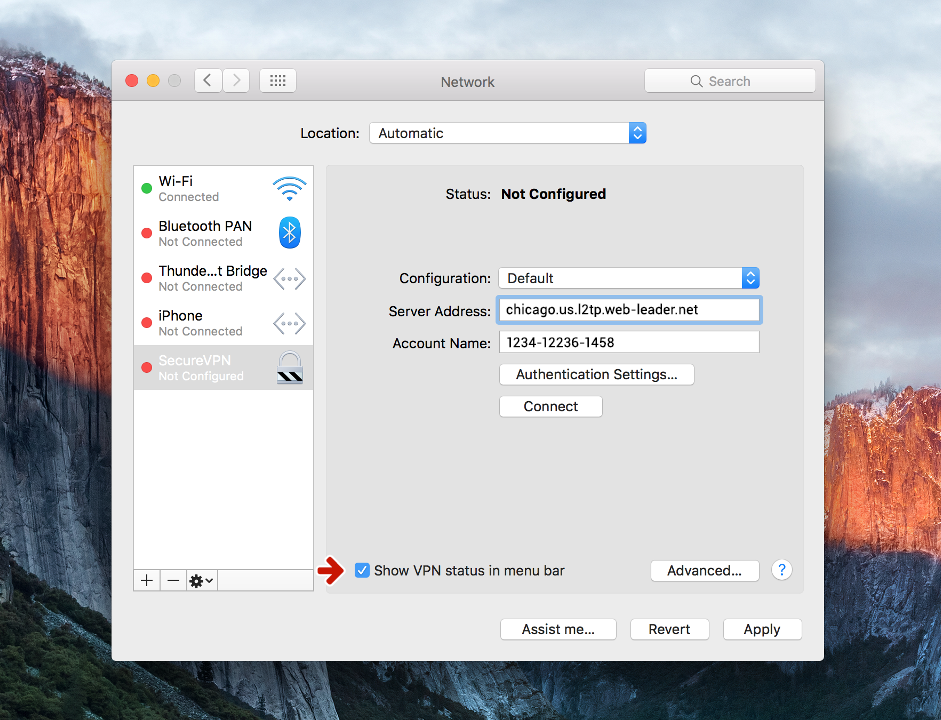

Set connection parameters:

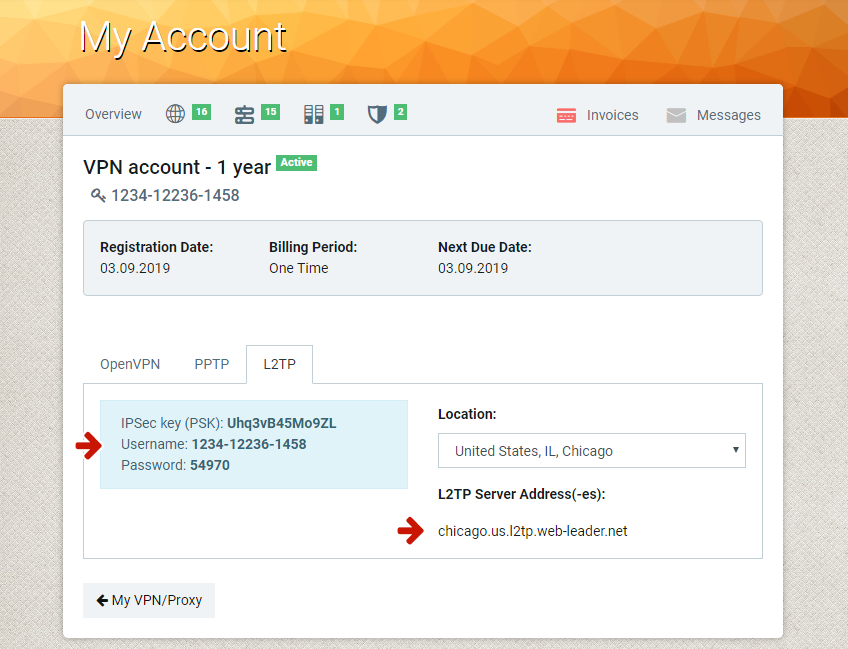

  • Server Address - address of VPN-server to connect for
  • Account Name - VPN account username

VPN Account Info VPN Parameters

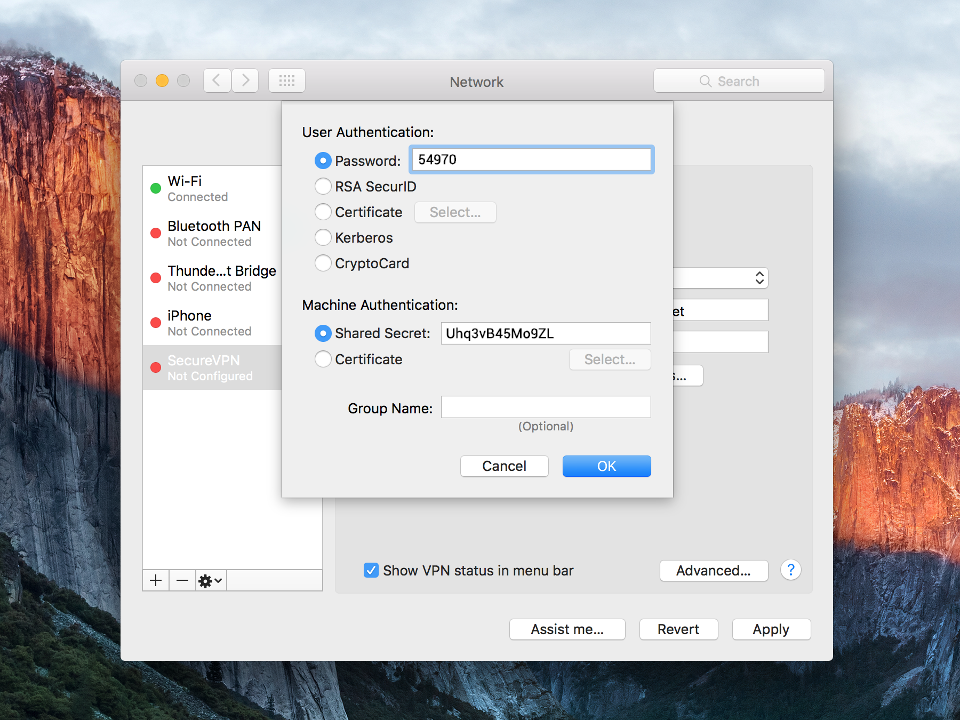

To proceed click Authentication Settings. Set Password, Shared Secret and click OK.

L2TP password

Check Show VPN status in menu bar and click Advanced.

Check Send all traffic over VPN connection and hit ОК.

Advanced Parameters

To finish click on Apply and Save Configuration.

Save Configuration

To establish VPN-connection click on VPN icon from status bar and hit Connect.

Connect
